The i-Series Command Hub provides comprehensive dehumidifier controls and detailed real-time data about the drying environment as well as job hours, self-diagnosis messages, maintenance reminders and operating status.
For detailed information and additional instructions, please visit the Command Hub page at LegendBrands.com

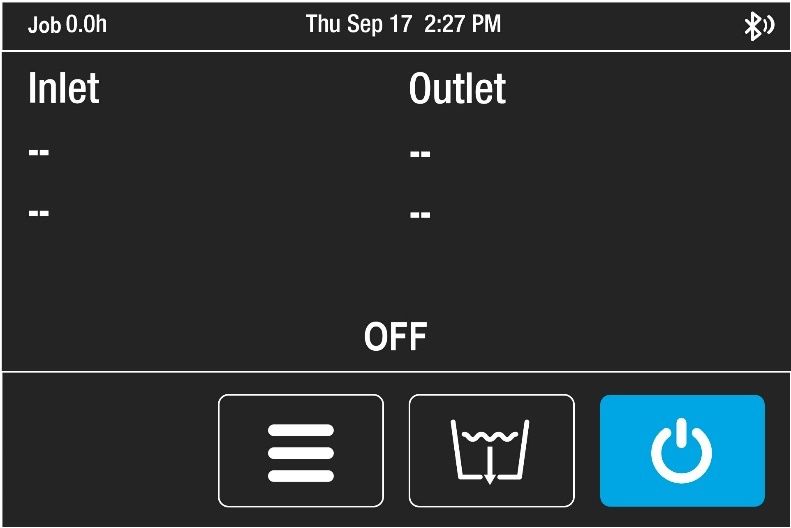

Unit OFF Unit must be plugged in. Top display bar: Job hours, current time Press Press Press
|
|

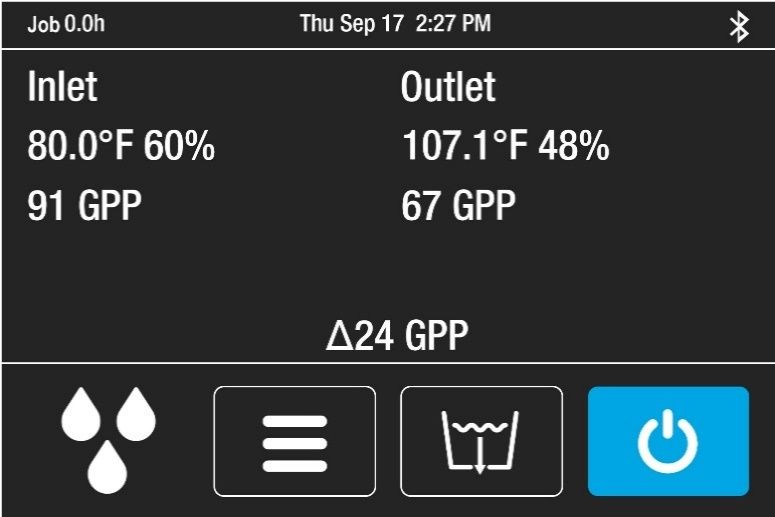

Unit ON Press ON/OFF key to switch unit on. Top display bar: Job hours, current time Information display: Inlet/Outlet temp, %RH and GPP Current GPP removal Bottom menu bar:
1: < 60 GPP; 2: 60–90 GPP; 3: > 90 GPP Press Press Press
|
|
MENU to access settings and configuration controls
PURGE to pump out condensate tank
ON/OFF to turn unit on.
