NOTICE: Only transport or store the unit in an upright position, or the oil from the compressor can flow into the refrigerant coils and reduce the ability of the dehumidifier to function and possibly damage the unit. If the unit has been placed on its back or front, set it upright and let it stand for at least 30 minutes before turning it on.
For best results, operate your dehumidifiers in an enclosed area. Close all doors and windows that open to the outside to maximize water removal efficiency. Place your dehumidifier away from obstructions, and keep it away from anything that could block airflow into and out of the unit.

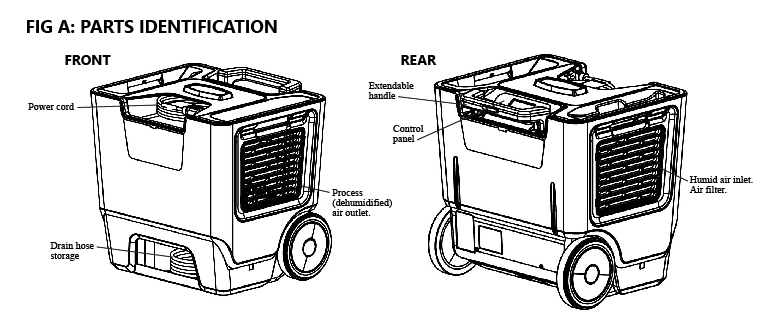

Extend the telescoping handle by pushing the button inward, then lifting handle up into place. Release the button to secure handle in operating position.
NOTICE: Do not use the extended handle to lift the unit off the ground. Do not use the extended handle as an attachment point to strap the unit in a vehicle for transport. These uses will place undue strain on the handle attachment points in the housing and cause damage not covered by the warranty.
This unit automatically pumps out water on a regular basis. This dehumidifier is equipped with a quick-connect fitting for attaching to the provided drain hose located in the lower compartment. Unwrap the entire hose and place the open end in a sink, drain, bucket or outdoors – anywhere that water can drain out safely. If you use a bucket or other container for water collection, check it regularly to prevent overflows.
NOTICE: Uncoil and straighten the entire drain hose. Do not leave any part of the hose coiled and do not place the end of the hose higher than 20 ft. (6 m) above the bottom of the unit. Also check for kinks or other obstructions that might restrict the flow of water. A kink or blockage will cause the unit to turn off producing an error message.
The dehumidifier should be plugged into a GFCI-protected 115 volt outlet rated for at least 15 amps.
When the unit is powered on and operating normally, indicator lights in the bezel illuminate blue. If the unit needs attention, indicator lights turn red. The top display bar will turn red and display an "Alert" indicator as well as the issue encountered. Press the top display bar to view the message and troubleshooting steps. When finished, press the “X” in the upper right corner.
Blue lights in the bezel indicate that the unit is powered on and operating normally. If the unit needs attention, the lights turn red.
